Lighting Equipment
Light Tower 4 Lite Doosan RL4 LED

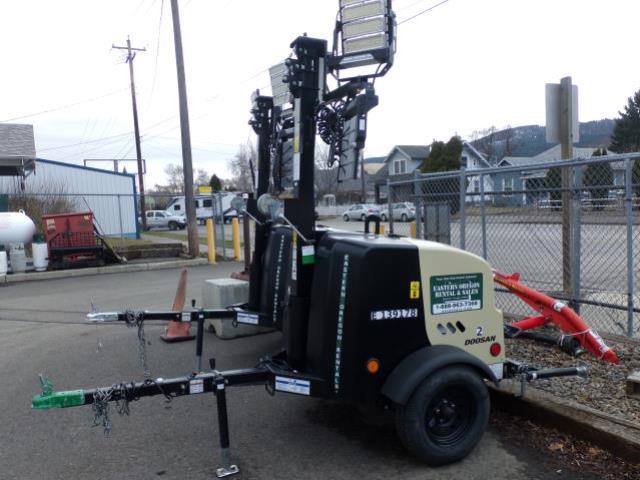

 Image for reference only  Click on above thumbnails for alternate view | |
Additional Information
- LCV6WKUB-60Hz-T4F Light Tower
- ENGINE
- MakeKubota D1005
- Emissions Tier LevelTier 4 Final
- Number of Cylinders / Displacement – cu in (L)3 / 61.1 (1.001)
- Power @ Rated Speed - bhp (kW)13.1 (9.76) @ 1800 RPM
- Cooling SystemWater / Glycol
- DC System Voltage / Battery Capacity12 VDC / 520 CCA
- Fuel Type#2 Ultra-Low Sulfur Diesel
- Usable Fuel Capacity – gal (L)52.4 (198.4)
- Runtime Full Load - hrs105
- Runtime with 4 Metal Halide Lights - hrs119
- Runtime with 4 LED Lights - hrs210
- GENERATOR
- Prime Power Rating, 1.0 PF - kW6
- Available AC Voltage - Single Phase - V120/240
- Available Frequency - Hz60
- RECEPTACLES (with individual circuit breaker protection)
- 120V GFCI Duplex (NEMA 5-20R)1 × 20A
- 240V Twist lock (NEMA L6-30R)1 × 25A*
- 230V IEC 309
- 230V EC 123-16
- WEIGHT
- Shipping Weight - lb (kg)1309 (595)
- Operating Weight - lb (kg)1669 (758)
- DIMENSIONS WITH RUNNING GEAR
- Length (Drawbar Down) - in (mm)109 (2768)
- Length (Drawbar Up) - in (mm)82 (2083)
- Width (Standard) - in (mm)55 (1397)
- Width (w/ Outriggers Deployed) - in (mm)121 (3084)
- Track Width - in (mm)47.4 (1206)
- Height (w/ Tower in Transport Position) - ft (m)8.4 (2.6)
- Height (w/ Tower Deployed) - ft (m)23 (7).
* Prices are subject to change. Delivery and other applicable fees are not included in this price estimate.
Please call us for any questions on our light tower 4 lite doosan rl4 led rentals in Baker City, Island City, Pendleton OR, and Pasco WA, serving Eastern Oregon
