Generators

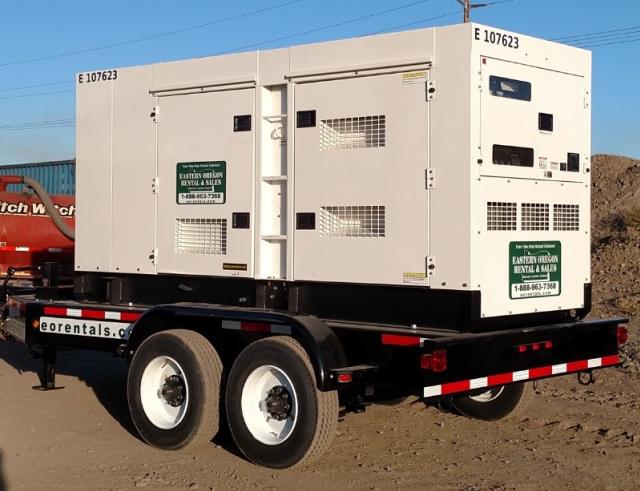

Generator Towable 240KVA
 Image for reference only  Click on above thumbnails for alternate view | |
Manufacturer Link: <Click Here>
Model: MQP240
Additional Information
- Brief Specs
- Model: MQP240
- Phase: 3
- Standby Output: 260 KW
- Prime Output: 240 Wet Weight: 9,010lbs. (4,091 kg)
- Rated Output: 363 HP at 1800 rpm
- Starting: Electric
- Fuel Tank Capacity (Trailer): 300 gallons
- Generator Specifications
- Model: MQP240
- Type: Revolving field, self ventilated, open protected type synchronous generator
- Armature Connection: Star with Neutral
- Phase: 3
- Standby Output: 260 KW
- Prime Output: 240 KW
- 3Ø Voltage (L-L/L-N) Voltage Change-Over Bd. at 3Ø 240/139: 208Y/120, 220Y/127, 240Y/139
- 3Ø Voltage (L-L/L-N) Voltage Change-Over Bd. at 3Ø 480/277: 416Y/240, 440Y/254, 480Y/277
- Power Factor: 0.8
- Frequency: 60 Hz
- Speed: 1800 rpm
- Aux. AC Power: Single Phase, 60 Hz
- Aux. Voltage/Output: 4.8 Kw (2.4 kW x 2)
- Dry Weight: 8,811 lbs. (4,000 kg)
- Wet Weight: 9,010lbs. (4,091 kg)
- Engine Specifications
- Model: Cummins QSL9-G3 Tier 3
- Type: 4 cycle, water-cooled, direct injection, turbo-charged with air to air after-cooler
- No. of Cylinders: 6 cylinders
- Bore x Stroke: 4.49 in. x 5.69 in. (114 mm x 145 mm)
- Displacement: 543 cu. in. (8900 cc)
- Rated Output: 363 HP at 1800 rpm
- Starting: Electric
- Coolant Capacity: 11.3 gal. (43.0 liters)
- Lube Oil Capacity: 7.0 gal. (26.5 liters)
- Fuel Type: #2 Diesel Fuel
- Fuel Consumption:
- 19.0 gal. (72.0 L)/hr at full load
- 15.5 gal. (58.6 L)/hr at 3/4 load
- 11.1 gal. (41.9 L)/hr at 1/2 load
- 5.9 gal. (22.4 L)/hr at 1/4 load
- Battery: 150 Ah x 2 (24V System)
* Prices are subject to change. Delivery and other applicable fees are not included in this price estimate.
Please call us for any questions on our generator towable 240kva rentals in Baker City, Island City, Pendleton OR, and Pasco WA, serving Eastern Oregon
