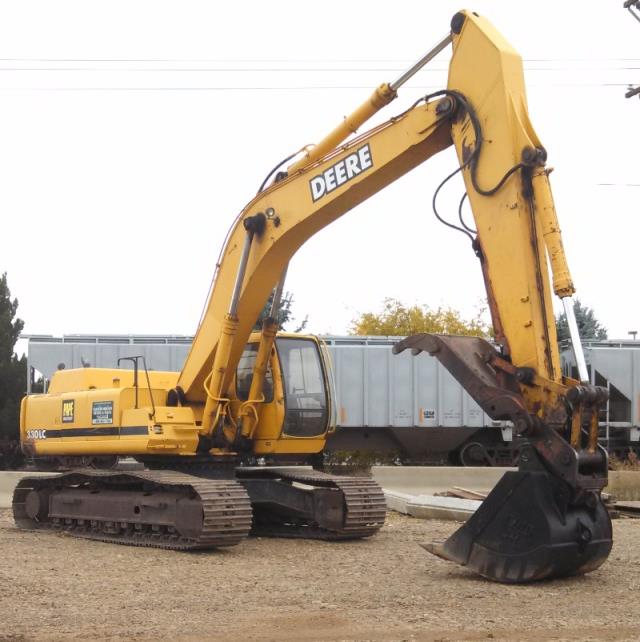

Excavator John Deere 330LC
 Image for reference only  Click on above thumbnails for alternate view | |
Model: 330LC
Additional Information
- With Thumb
- ENGINE 330LC
- Type: John Deere 6081H with turbocharger and charged
- Rated power: 235 SAE net hp (175 kW) @ 2,000 rpm
- Cylinders:6
- Displacement: 494 cu. in. (8.1 L)
- Maximum net torque: 940 lb.-ft. (1275 Nm) @ 1,100 rpm
- Fuel consumption, typical: 6 to 10 gal./hr. (23 to 38 L/h)
- Cooling fan: suction-type drive suction-type drive
- Electrical system: 24 volt with 45-amp alternator
- Batteries (two 12 volt): reserve capacity: 180 min.
- HYDRAULIC SYSTEM
- Main pumps: 2 variable-displacement axial-piston open center
- Maximum flow: 2 x 77 gpm (2 x 292 L/min.)
- Minimum flow: 2 x 21 gpm (2 x 79 L/min.)
- Pilot pump: one gear
- Maximum rated flow: 4.4 gpm (16.8 L/min.)
- Pressure setting: 570 psi (3923 kPa)
- System operating pressure
- Implement circuits: 4,624 psi (31 880 kPa)
- Travel circuits: 5,050 psi (34 820 kPa)
- Swing circuits: 4,340 psi (29 920 kPa)
- Oil filtration:
- one 10-micron full-flow return filter with by-pass
- one pilot oil filter
- one suction filter
- CYLINDERS
- Boom (2)
- Bore5.9 in. (150 mm)
- Rod diameter: 4.1 in. (105 mm)
- Stroke: 59.3 in. (1507 mm)
- Arm (1)
- Bore: 6.7 in. (170 mm)
- Rod diameter: 4.5 in. (115 mm)
- Stroke: 70.7 in. (1795 mm)
- Bucket (1)
- Bore: 5.7 in. (145 mm)
- Rod diameter: 3.7 in. (95 mm)
- Stroke: 49.2 in. (1250 mm)
- SWING MECHANISM
- Swing speed: 0 - 10.9 rpm
- Swing torque: 67,700 lb.-ft. (9363 kg/m)
- UNDERCARRIAGE
- Carrier rollers (per side): 2
- Track rollers (per side): 9
- Idlers (per side): 1
- Shoes, triple semigrouser (per side): 48
- Track guides: front and center
- Track adjustment: hydraulic
- Travel speed
- Low: 0 - 2.2 mph (0 - 3.6 km/h)
- High: 0 - 3.4 mph (0 - 5.5 km/h)
- Drawbar pull: 56,086 lb. (249.5 kN)
- GROUND PRESSURE DATA
- Average ground pressure
- 24-in. (600 mm) triple semigrouser shoes: 8.86 psi (61.0 kPa);
- (for rocky terrain and stumps)
- 32-in. (800 mm) triple semigrouser shoes: 6.74 psi (46.5 kPa);
- (for general/soft terrain):
- CAPACITIES
- Fuel tank: 148 gal. (560 L)
- Cooling system: 58 qt. (55 L)
- Engine lubrication, including filter: 7.4 gal. (28 L)
- Hydraulic system: 85 gal. (320 L)
- Planetary propel drive (each): 9.7 qt. (9.2 L)
- Swing drive: 18 qt. (17 L)
- Hydraulic tank: 41 gal. (154 L)
- OPERATING WEIGHTS
- With full fuel tank,
- 175-lb. (79 kg) operator,
- 54-in. (1370 mm) 2.3-cu. yd. (1.76 m3) bucket,
- and 13-ft. 1-in. (4.0 m) arm,
- with 32-in. (800 mm) triple grouser shoes
- and 15,018-lb. (6812 kg) counterweight: 72,800 lb. (33 058 kg)
- With 30-in. (750 mm) triple grouser shoes
- and 16,645-lb. (7550 kg) counterweight: 81,200 lb. (36 832 kg)

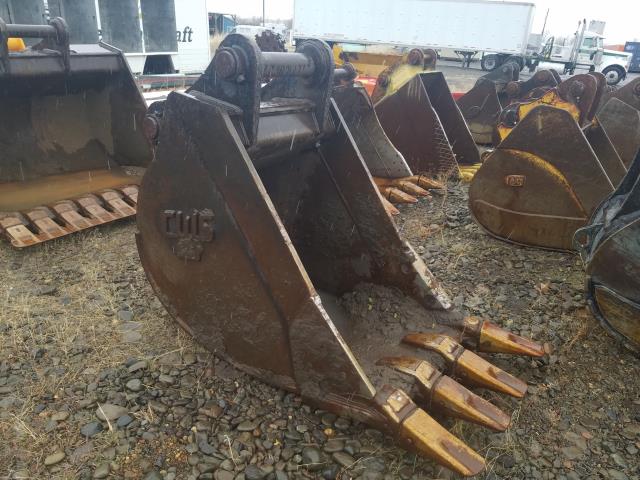

Consider these items to go with your rental:
