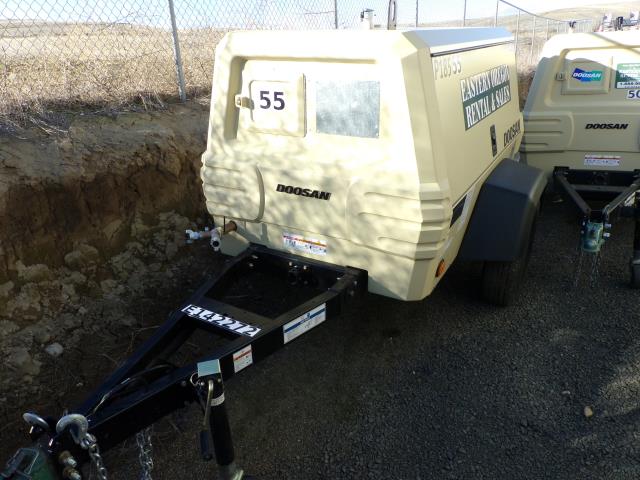

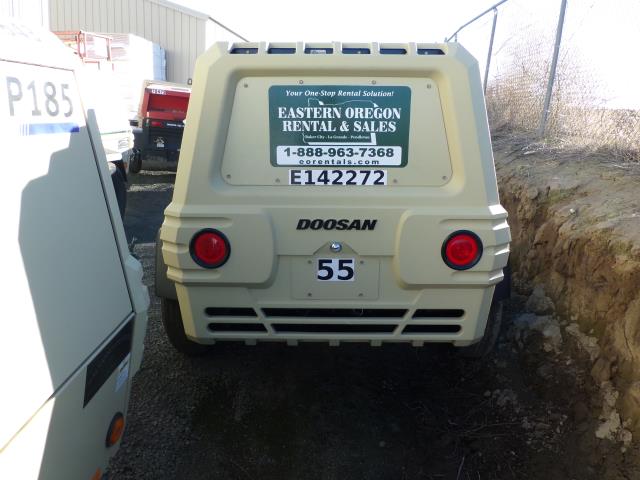

Compressor 185 CFM DSL #55 P185WDO-T4F
 Image for reference only   Click on above thumbnails for alternate view | |
Manufacturer Link: <Click Here>
Model: P185WDO-T4F
Additional Information
- Model: P185WDO-T4F: Portable air compressor meets the needs of a variety of applications. Perfect for powering handheld air tools, sandblasting, sprinkler and irrigation line blow-out, and cable laying and pipeline testing.
- Brief Specs
- Free Air Delivery: 185 cfm (5.2 m³/min)
- Pressure: 100 psig (6.9 bar)
- Dimensions & Weight
- Overall length: 125 inch
- Overall width: 60 inch
- Overall height: 55.25 inch
- Weight wet: 2,375 lbs
- Detailed Specs
- Compressor Rotary Screw/Single-Stage
- Free-Air Delivery – cfm (m3/min): 185 (5.2)
- Rated Operating Pressure – psig (bar): 100 (6.9)
- Pressure Range – psig (bar): 80 – 125 (5.5 – 8.6)
- Air Discharge Outlet Size – in (mm): 0.75 (19)
- Air Discharge Outlet Quantity: 2
- Fuel Tank Capacity – gal (L): 27 (102)
- Engine
- Make/ModelDoosan D24
- Emissions Tier LevelTier 4 Final (T4F)
- Number of Cylinders: 4
- Displacement – cu in (L):147 (2.4)
- Rated Speed – rpm: 2600
- Idle Speed – rpm: 1700
- Bhp @ Rated Speed (kW): 49 (36.4)
- Electrical - volts: 12
- Hours of Operation @ Full Load: 10
- Dimensions with Running Gear
- Length – in (mm): 137.6 (3494)
- Width – in (mm): 68.5 (1740)
- Height – in (mm): 66 (1676)
- Track Width – in (mm): 59 (1499)
- Tire Size – in: 15
- Working Weight – w fuel – lb (kg): 2447 (1110)
* Prices are subject to change. Delivery and other applicable fees are not included in this price estimate.
Please call us for any questions on our compressor 185 cfm dsl 55 p185wdo t4f rentals in Baker City, Island City, Pendleton OR, and Pasco WA, serving Eastern Oregon
