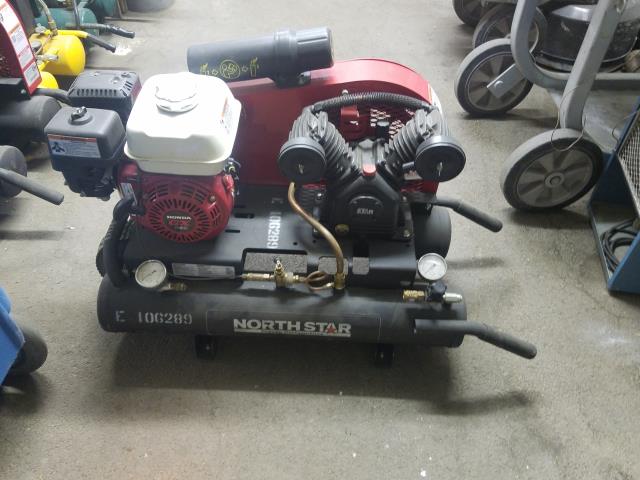

Compressor 13.7 CFM Gas 8Gal Twin Tnk #2
 Image for reference only  Click on above thumbnails for alternate view | |
Manufacturer Link: <Click Here>
Model: 459212E
Additional Information
- Specs
- Max. PSI: 130
- CFM at 90 PSI: 13.7
- CFM at 40 PSI: 14.6
- Engine: Honda GX 160
- Start Type: Recoil
- Engine Displacement (cc): 163
- Engine Idle Control: Yes
- Stage: Single
- Drive: Belt
- Tank Type: Horizontal twin
- Air Tank Size (gal.): 8
- Portable or Stationary: Portable
- Pump: Cast iron
- Duty Cycle: 100
- Air Outlet Size (in.): 1/4 quick connect
- After-Cooler Included: Yes
- Drain System: Manual
- Low Oil Protection: Yes
- Fuel Capacity (gal.): 0.825
- Dimensions L x W x H (in.): 42 x 18 x 25
- Features
- Honda GX160 OHV engine with low oil shutdown
- Full cast iron pump for long service life
- V-style cylinder design for superior cooling
- Pump head made of FC35 Grade cast iron
- Floating-type Swedish steel valves deliver much longer valve life
- Operates at slower RPM to run cooler and last longer
- Low Vibration Technology (LVT) features a dynamically balanced pump for smooth operation and long life
- One-piece cast iron crankcase has bearings on both ends of crankshaft for superior crankshaft support, not overhung crankshaft design
- 100% duty cycle
- Delivers 13.7 CFM @ 90 PSI; 13.5 CFM @ 130 PSI
- 130 max. PSI
- Oversized flywheel for cooler operation
- Heavy cast iron flywheel provides extra momentum
- Step-type piston rings ensure piston ring overlap for better compression
- Sight glass for quick viewing of oil level
- Replaceable crank journals and wrist pin journal/needle bearings
- Two-piece connecting rods can be rebuilt for superior serviceability
- High pressure piston wrist pins have needle bearings
- Easy start lever on unloader valve isolates pump from tank pressure, so engine won't have to start under load
- Durable steel belt guard
- Liquid-filled pressure gauge
- Pressure regulator to control outlet pressure
- 8-gallon horizontal twin tank
- Built-in wheel with handles for easy portability
