Aerial Boom Lifts

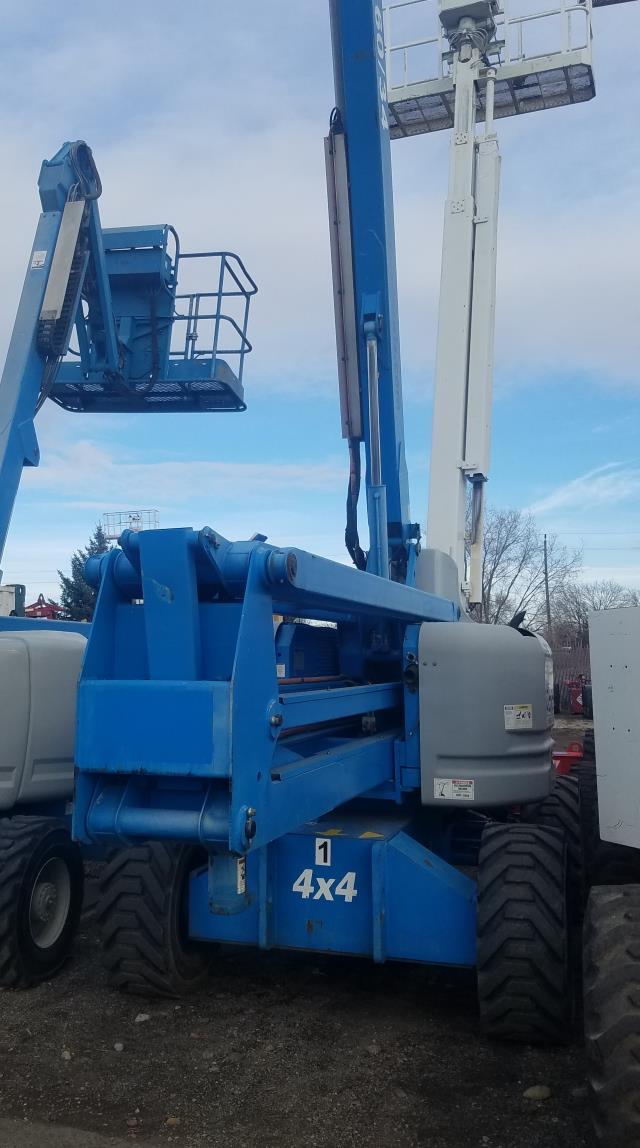

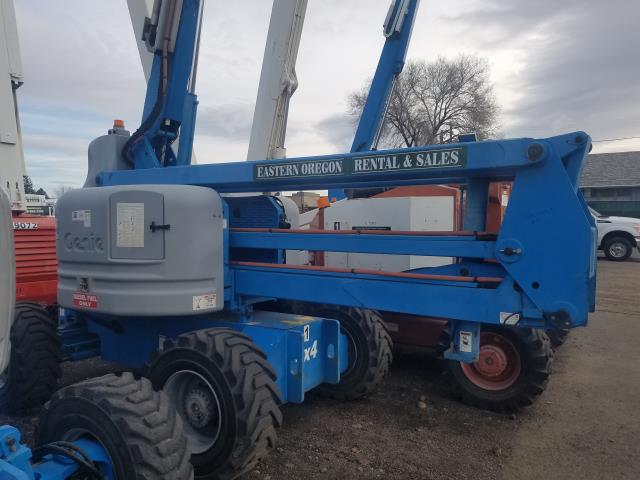

Work Platform Genie Z62/40 Diesel
 Image for reference only   Click on above thumbnails for alternate view | |
Manufacturer Link: <Click Here>
Model: Z-60/34
Additional Information
- MEASUREMENTS
- Working height maximum* 66 feet
- Platform height maximum 60 feet
- Horizontal reach maximum 34 ft
- Up and over clearance maximum 23 ft 6 in
- Platform length 6 ft 6 in
- Platform width 2 ft 9 in
- Height - stowed 8 ft 1 in
- Length - stowed 26 ft
- Width 7 ft
- Wheelbase 7 ft 11 in
- Ground clearance - center 1 ft
- PRODUCTIVITY
- Lift capacity 500 lbs
- Platform rotation 180°
- Vertical Jib rotation -
- Turntable rotation 355° non-continuous
- Turntable tailswing zero
- Drive speed - stowed 5.0 mph
- Drive speed - raised 0.68 mph
- Gradeability - 4WD - stowed*** 45%
- Turning radius - inside 11ft
- Turning radius - outside 19 ft 9 in
- Controls 12 V DC proportional
- Tires 385/65/19.5
- POWER
- deutz diesel 56hp
- Auxiliary air hose connection
- Hydraulic tank capacity 45 gal
- Fuel tank capacity 20 gal
- WEIGHT
- 4X4 WD: 22,055 lbs
* Prices are subject to change. Delivery and other applicable fees are not included in this price estimate.
Please call us for any questions on our work platform genie z62 40 diesel rentals in Baker City, Island City, Pendleton OR, and Pasco WA, serving Eastern Oregon
