Generators

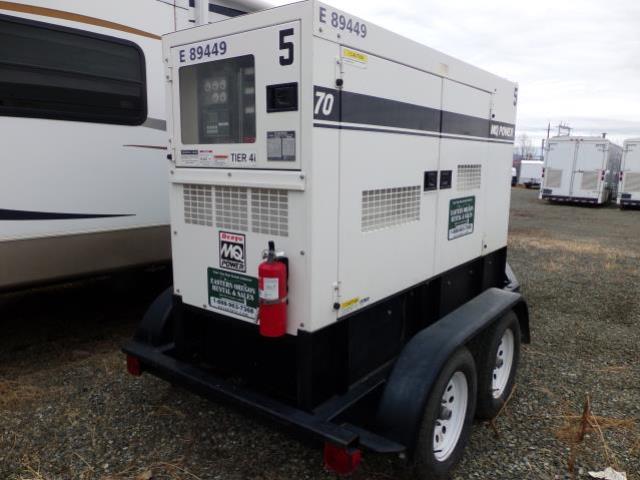

Generator Towable 70KVA
 Image for reference only  Click on above thumbnails for alternate view | |
Manufacturer Link: <Click Here>
Additional Information
- DIMENSIONS:
- OVERALL LENGTH: 94"
- OVERALL WIDTH: 35"
- OVERALL HEIGHT: 55"
- DRY WEIGHT: ~3219 LBS
- SOUND LEVEL DB(A) - FULL LOAD @ 23': 67 DB(A)
- REQUIRES 2" BALL FOR TOWING
- ENGINE MAKE / MODEL: JD 4045TF150
- PERFORMANCE DATA:
- replace water pump 10,983 jim at job site
- STANDBY OUTPUT: 61 KW , 77 KVA
- PRIME OUTPUT: 56 KW , 70 KVA
- GENERATOR RPM: 1800 RPMS
- GENERATOR DESIGN: REVOLVING FIELD SELF-VENTILATED DIP-PROOF SINGLE BEARING
- VOLTAGE REGULATION - (NO LOAD TO FULL LOAD): 1.5 %
- POWER FACTOR: 0.8
- ARMATURE CONNECTION: STAR WITH NEUTRAL / ZIGZAG
- EXCITATION: BRUSHLESS WITH AVR
- NO. POLES: 4 POLE
- FREQUENCY: 60 HZ
- AVAILABLE VOLTAGES - THREE PHASE:
- 208, 220, 240, 416, 440, 460, 480V SWITCHABLE VOLTS
- AVAILABLE VOLTAGES - SINGLE PHASE:
- 120, 127, 139, 240, 254, 277 SWITCHABLE VOLTS
- AMPS - SINGLE PHASE 120V:
- 155.5 (4 WIRE) 168 X 2 (ZIGZAG) AMPS
- AMPS - SINGLE PHASE 240V:
- 77.8 (4 WIRE) 168 (ZIGZAG) AMPS
- AMPS - THREE PHASE 240V:
- 168 AMPS
- AMPS - THREE PHASE 480V:
- 84 AMPS
- INSULATION: CLASS F
* Prices are subject to change. Delivery and other applicable fees are not included in this price estimate.
Please call us for any questions on our generator towable 70kva rentals in Baker City, Island City, Pendleton OR, and Pasco WA, serving Eastern Oregon
