Earth-Track Hoes
Excavator Link Belt 240 X2 (Long Boom)
 Image for reference only | |
Model: 200CLC
Additional Information
- Max Cutting Height 45.8 ft (14 m)
- Max Digging Depth 47.8 ft (15 m)
- Max Loading Height 38.7 ft (12 m)
- Max Reach Along Ground 59.8 ft (18 m)
- Max Vertical Wall Digging Depth 39.8 ft (12 m)
- Shipping Height of Unit 10.3 ft (3 m)
- Shipping Length of Unit 47.2 ft (14 m)

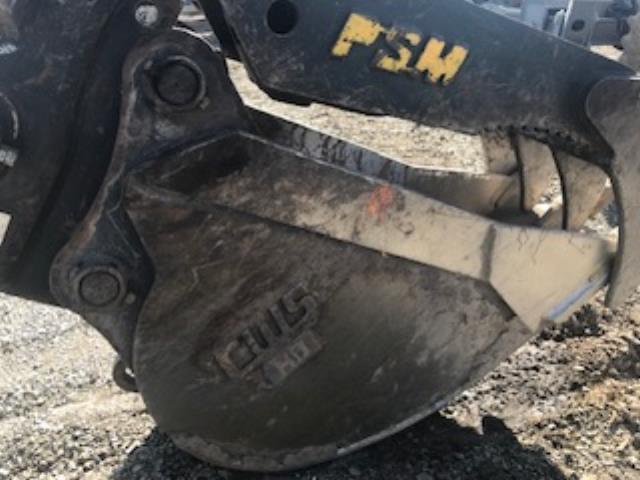

- Bucket
- Maximum Bucket Capacity 0.9 cu yds (1 m)
- Minimum Bucket Capacity 0.5 cu yds (0 m)
- Reference Bucket Capacity 0.5 cu yds (0 m)
- Dimensions
- Ground Clearance 1.6 ft (0 m)
- Height - Top of Cab 9.9 ft (3 m)
- Length of Track on Ground 12.6 ft (4 m)
- Removal Counterweight Clearance 3.7 ft (1 m)
- Tail Swing Radius 9.7 ft (3 m)
- Width to Outside of Tracks 11.2 ft (3 m)
- Engine
- Aspiration Turbocharged
- Displacement 317.4 cu in (0 m)
- Engine Model AH-4HK1X
- Max Torque 469 lbs/ft
- Net Power 177 hp (132 kw)
- Power Measured @ 2000 rpm
- Torque Measured @ 1500 rpm
- Operating Specifications
- Alternator Supplied Amperage 50 A
- Cooling System Fluid Capacity 6.7 gal (25 l)
- Engine Oil Capacity 6.2 gal (23 l)
- Fuel Capacity 108.4 gal (410 l)
- Hydraulic Pump Flow Capacity 123.6 gal/min (468 l/min)
- Hydraulic System Fluid Capacity 66.1 gal (250 l)
- Hydraulic System Relief Valve Pressure 4970 psi
- Operating Voltage 24 V
- Operating Weight 61729 lbs (28,000 kg)
- Swing Drive Fluid Capacity 2.6 gal (10 l)
- Swing Mechanism
- Swing Speed 10.7 rpm
- Undercarriage
- Ground Pressure 6.1 psi
- Max Travel Speed 3.4 mph (5 kph)
- Number of Carrier Rollers per Side 2
- Number of Shoes per Side 51
- Number of Track Rollers per Side 9
- Shoe Size 31.5 in (80 cm)
- Track Gauge 8.5 ft (3 m)
Consider these items to go with your rental:
* Prices are subject to change. Delivery and other applicable fees are not included in this price estimate.
Please call us for any questions on our excavator link belt 240 x2 long boom rentals in Baker City, Island City, Pendleton OR, and Pasco WA, serving Eastern Oregon
