Earth-Loaders & Skid Steers

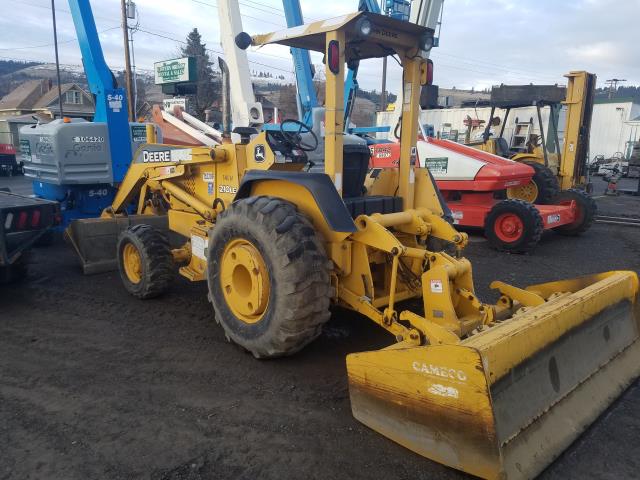

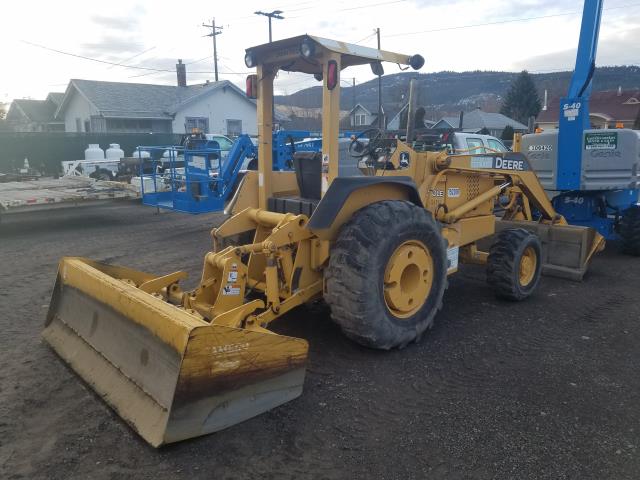

Loader Skip JD210LE
 Image for reference only   Click on above thumbnails for alternate view | |
Manufacturer Link: <Click Here>
Model: 210LE
Additional Information
- ENGINE
- Manufacturer/Model: John Deere/4045D
- Net Power hp (kW) @ Rated rpm: 73 @ 2200
- # Cylinders and Displacement cu in. (L): 4 - 276
- ELECTRICAL Volts / Alternator amps 12 / 65
- TRANSMISSION
- Type: Synchromesh
- Speed Ranges F/R: 4 x 4
- Forward: 20.5
- Reverse: 20.5
- BRAKES
- Type: Wet multiple disc
- Actuation: Hydraulic/foot pedal
- HYDRAULIC SYSTEM
- Pump Type: Gear
- Pump Flow gpm: 25
- System Pressure psi: 2750
- MFWD Standard/ Optional/ None: Standard
- Axle Oscillation deg. 22º
- LOADER AND BUCKET
- SAE Heaped Capacity, cu yd: 1.00
- Loader Bucket width, in.: 86"
- Breakout force lb: 7,900
- Lift Capacity to Full Height, lb: 5,280
- Dump Clearance @ 45 deg., ft & in.: 8' 4.6"
- Dump Reach, in.: 34.4"
- Bucket Hinge Pin Max. Hgt, ft & in.: 11' 4.7"
- Coupler (Mechanical, Hydraulic) Opt
- THREE POINT HITCH
- Lift Capacity @ Lift Points lb: 6,870
- Lift Capacity @ 24 in. Behind lb: 3,790
- POWER TAKE OFF, Std/Opt Opt
- PTO rated speed, rpm: 540
- DIMENSIONS
- Transport Height ft & in.: 8' 1.6"
- Transport Length ft & in.: 17' 2"
- Transport Width ft & in.: 7' 2"
- CAPACITIES
- Fuel Tank gal: 26
- Hydraulic Reservoir gal: Not published
- OPERATING WT w/MFWD & 3 pt Hitch lb: 10,405
