Earth-Loaders & Skid Steers

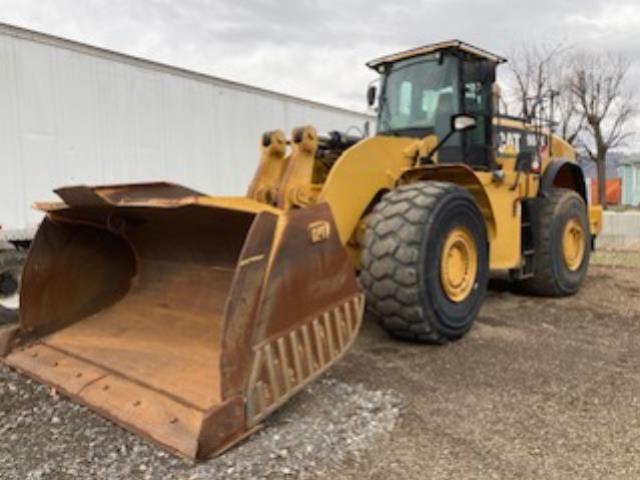

Loader Front End Loader 980
 Image for reference only | |
Model: 980M
Additional Information
- Net Power - ISO 9249 386 HP
- Emissions Tier 4/Stage IV
- Maximum Power - 1,700 rpm - SAE J1995 425 HP
- Engine Model Cat C13
- Maximum Power - 1,700 rpm - SAE J1995 - Metric 431 HP
- Peak Gross Torque - 1,200 rpm - ISO 14396 1609 ft·lbf
- Peak Gross Torque - 1,200 rpm - SAE J1995 1627 ft·lbf
- Maximum Net Power - 1,700 rpm - ISO 9249 386 HP
- Maximum Net Power - 1,700 rpm - SAE J1349 386 HP
- Maximum Net Power - 1,700 rpm - SAE J1349 - Metric 392 HP
- Maximum Net Power - 1,700 rpm - ISO 9249 - Metric 392 HP
- Maximum Net Torque - 1,100 rpm 1515 ft·lbf
- Maximum Power - 1,700 rpm - ISO 14396 - Metric 426 HP
- Displacement 763 in³
- Maximum Power - 1,700 rpm - ISO 14396 420 HP
- Note The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes.
- WEIGHTS
- Operating Weight 66337 lb
- mplement System - Maximum Pump Output at 2,250 rpm 119 gal/min
- Implement System - Maximum Operating Pressure 4975 psi
- Hydraulic Cycle Time - Total 10.1
- Wheel Base 12.5 ft
- Centerline of Rear Axle to Hitch 6.25 ft
- Maximum Width over Tires 10.83 ft
- Overall Length - Without Bucket 26.83 ft
- Tread Width 8 ft
- Lift Arm Clearance at Maximum Lift 13.08 ft
- Height - Top of Hood 10.25 ft
- Note All dimensions are approximate and based on Michelin 29.5R25 XLDD1 L4 radial tires.
- Height - Top of Exhaust Pipe 12.33 ft
- Hinge Pin Height at Carry 2.25 ft
- Rack Back - Maximum Lift 61 degrees
- Rack Back - Carry Height 48 degrees
- Centerline of Rear Axle to Edge of Counterweight 8.17 ft
- Ground Clearance 1.42 ft
- Hinge Pin Height at Maximum Lift 15.58 ft
- Rack Back at Ground 39 degrees
- Height - Top of ROPS 12.58 ft
* Prices are subject to change. Delivery and other applicable fees are not included in this price estimate.
Please call us for any questions on our loader front end loader 980 rentals in Baker City, Island City, Pendleton OR, and Pasco WA, serving Eastern Oregon
